MOVABLE MAGAZINE ASEMBLABLE

Explosion-proof detonator cabinet (4 boxes) W800×D580×H750

Explosion-proof detonator cabinet (6 boxes) W800×D580×H950

Explosion-proof detonator cabinet (8 boxes) W800×D580×H1250

Explosion-proof detonator cabinet (10 boxes) W800×D580×H1450

Explosion-proof detonator cabinet (12 boxes) W1200×D580×H1250

Explosion-proof detonator cabinet (15 boxes) W1200×D580×H1450

Explosion-proof detonator cabinet (20 boxes) W1500×D580×H1450

1 ton detonator warehouse 1300*1100*2000

2 ton detonator warehouse 1700*1700*2000

3 ton detonator warehouse 2300*1700*2000

4-ton detonator warehouse 3500*1700*2000

5-ton detonator warehouse 3500*2000*2000

6-ton detonator warehouse 3500*2400*2000

8-ton detonator warehouse 4500*2400*2000

10 ton detonator warehouse 5800*2400*2000

15-ton detonator warehouse 5800*3600*2000

20-ton detonator warehouse 10000*4000*2000

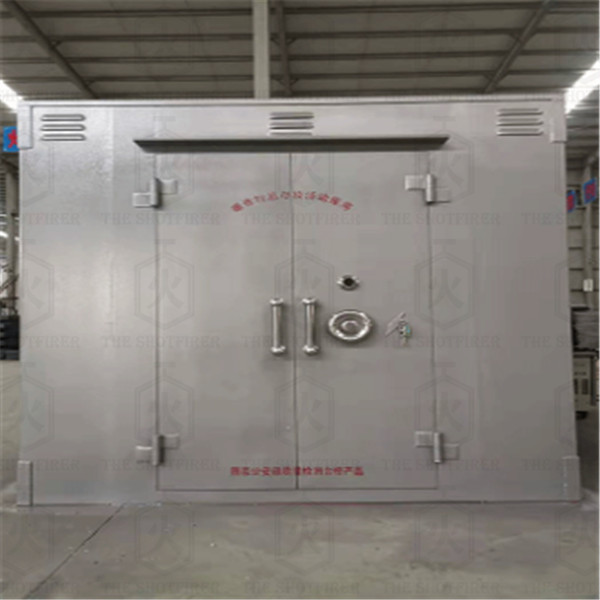

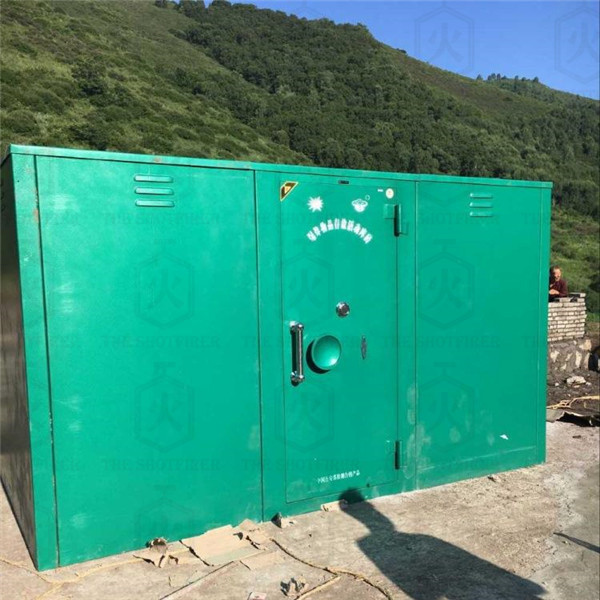

Installation of 4 tons of mobile explosives magazine safety certificated anti-explosion warehouse

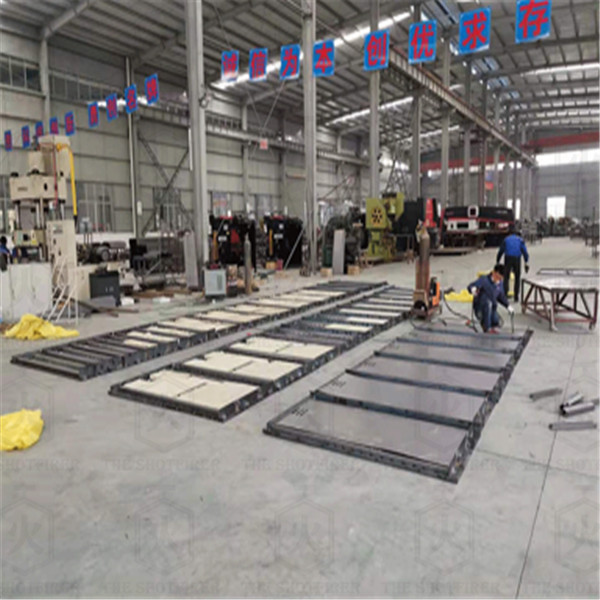

The mobile explosive magazine is made up of 6 or more plates fixed by bolts in turn. Dismantling the magazine is also done by first unscrewing the bolts and then removing the plates. The explosive library dismantling requires more than 4 workers. Steps: Unscrew all the screws of the top plate and remove all the top plate blocks. Secondly, use a wrench to unscrew all the bolts of the floor, and the bottom plate does not need to be lifted temporarily. Unscrew all the bolts of the explosive storage door plate, the workers moved the door plate down and put it away, paying attention to the lock face up, and the explosive storage door lock cannot be held down by heavy objects. Then unscrew the side plate bolts in turn, remove them and place them. When removing the side plates, two workers are required to hold the uncompleted warehouse body to prevent accidents from falling.

High-quality steel plate explosion-proof 100 kg

Introduction:

The shell of the box is made of hardened steel cold-rolled process to ensure the strength of the steel plate and has the effect of explosion-proof and anti-cutting. It is lined with anti-static wood board to eliminate potential safety hazards caused by static electricity. In addition, the box is equipped with a three-in-one combination lock and a cross lock . There is a layer of anti-rust paint on the outside, smooth and beautiful!

150Kg

Use high-quality steel plate, lined with explosion-proof and anti-static cotton, and use industry-specific combination locks and cross locks to achieve explosion-proof, anti-theft, anti-static, anti-pry, and moisture-proof functions. At the same time, special anti-corrosion paint protection is used for outdoor outdoor protection for a long time. use!

200Kg

It is suitable for construction enterprises with high mobility such as railways, highways, ports, water conservancy and hydropower, and petroleum exploration, to meet the storage and management needs of their civilian objects. The product adopts a unique explosion-proof and explosion-venting design. The box body is surrounded by a combination of high-quality steel plates and a patented explosion-proof cotton design, which minimizes the damage to people and the surrounding environment, and can achieve explosions. Explosion-proof function, at the same time, it also has the functions of fire prevention, anti-static, anti-theft, anti-flame cutting, anti-drilling, anti-impact, etc.

250Kg

Material description: internal and external double-layer high-quality steel plates, the middle fireproof, anti-static, explosion-proof design, the top layer is designed for explosion venting, and the base is designed for load-bearing structure.

300Kg

Product manufacturing standards:

Strictly according to the requirements of relevant standards: the box body is made of flame-proof and explosion-proof materials, and is composed of four parts: wall panels, bottom panels, top panels and warehouse doors; the inner wall and bottom of the cabinet must have fireproof panels; the lock installation position and the corresponding door bolt position of the cabinet Anti-drilling board is required.

The metal surface of the steel plate and connecting parts outside the box is sprayed with anti-rust paint with functions such as oil removal and rust removal, which has high corrosion resistance and is suitable for harsh environments of outdoor storage.

The use of high-quality steel, anti-theft, anti-pry, anti-impact, anti-static, anti-humidity, explosion-proof and six-proof functions are powerful, which can effectively prevent the theft of explosives and protect the local people's property and personal safety.

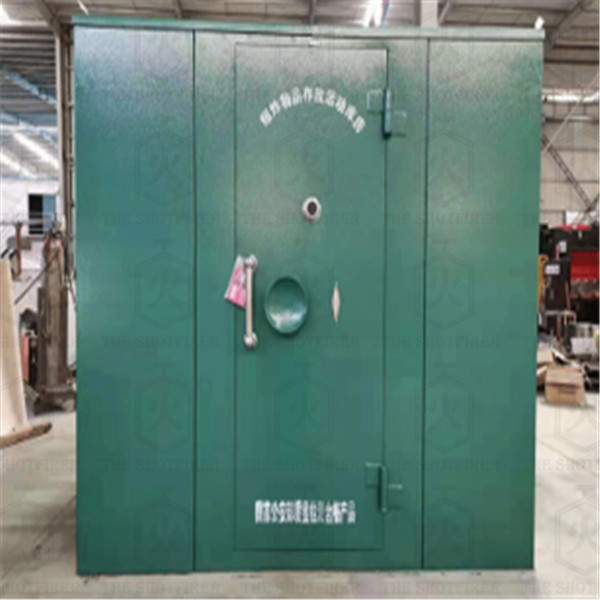

375 Kg

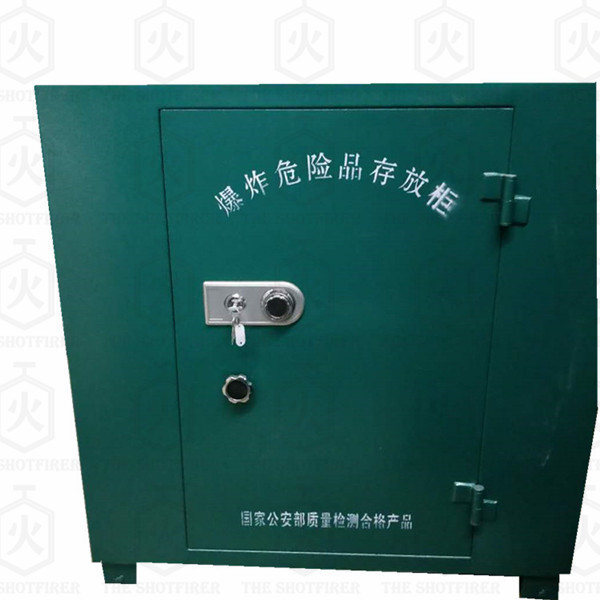

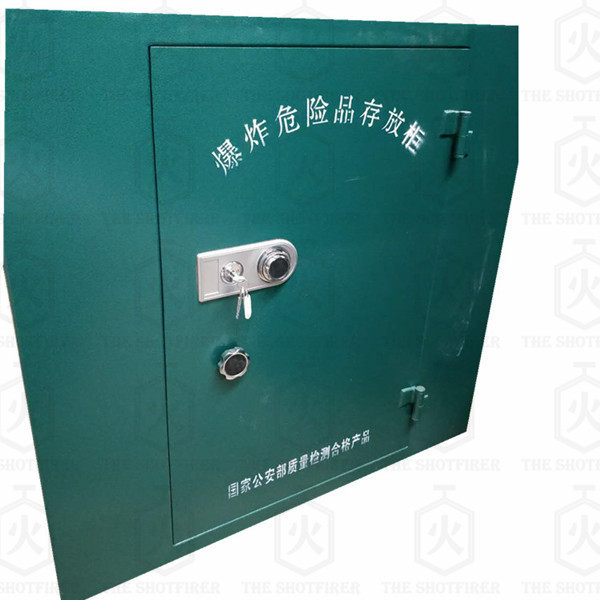

The anti-theft and explosion-proof structure of the cabinet is the same as that of the explosive storage. In addition, conductive copper sheet insulation film and classic guide wires are placed at the bottom of the cabinet; detonators or explosives and other pyrotechnic materials can be directly stored (detonators and explosives cannot be stored in the same storage). It is a high-quality product for storing valuables. This product has functions: anti-theft, anti-fire, anti-lightning, discharge static electricity, anti-collision, anti-stress.

500Kg

Six anti-theft, anti-fire, anti-lightning, anti-static, anti-collision, anti-stress functions.

Using 5.0 steel plate as the main raw material, processed and produced by a variety of processes, the warehouse is equipped with a code lock, and the anti-theft performance is high. According to the different storage environment of the user, the warehouse can choose to add a protective layer, safety and fire prevention, and isolation performance. High, the product is resistant to strong pressure, strong and durable.
