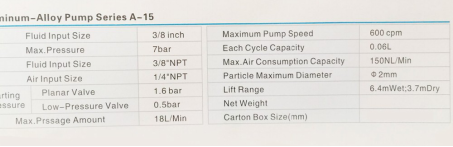

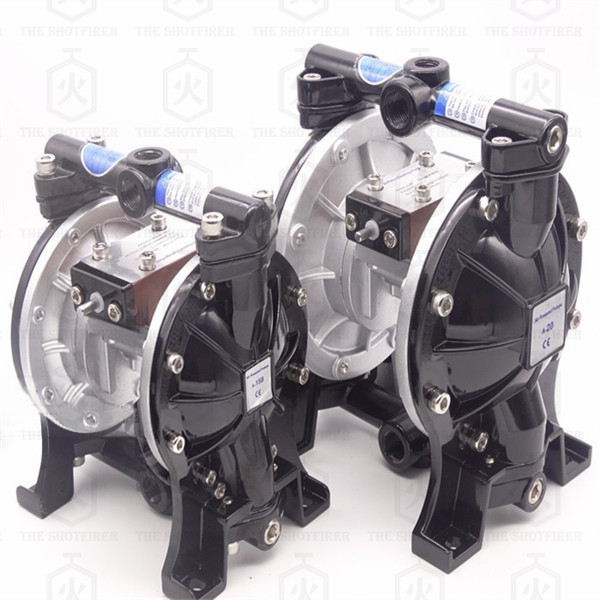

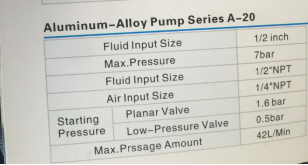

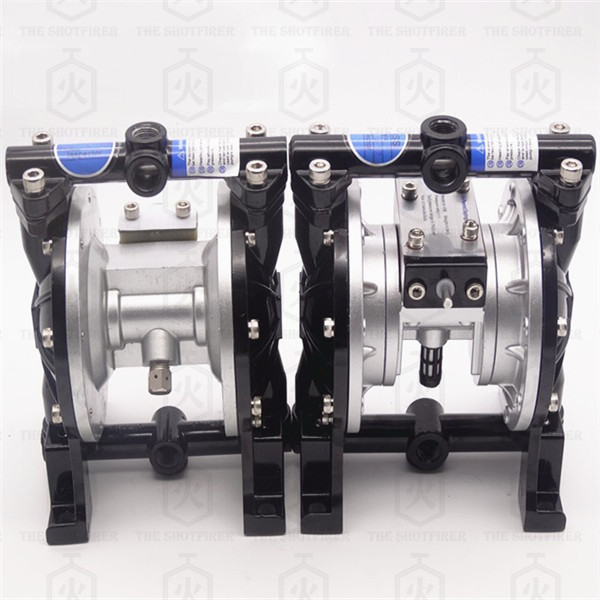

A-15/A-20 Small Pneumatic Diaphragm Pump 150NL/Min Paint Pump 3 orders

strong safe easy to maintanance

500RMB

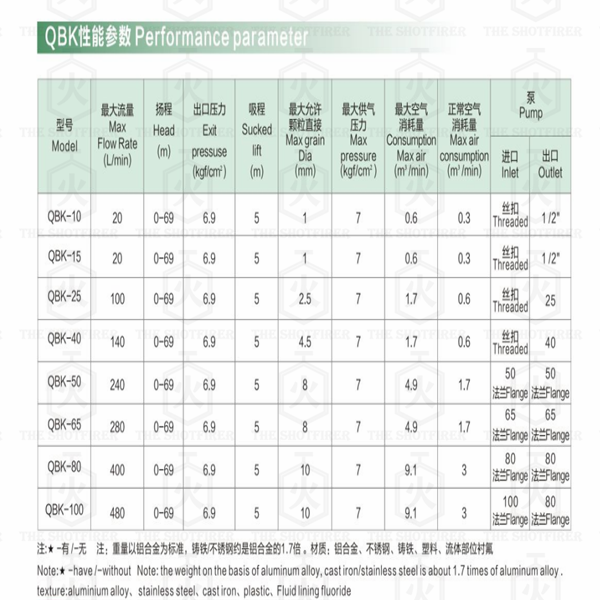

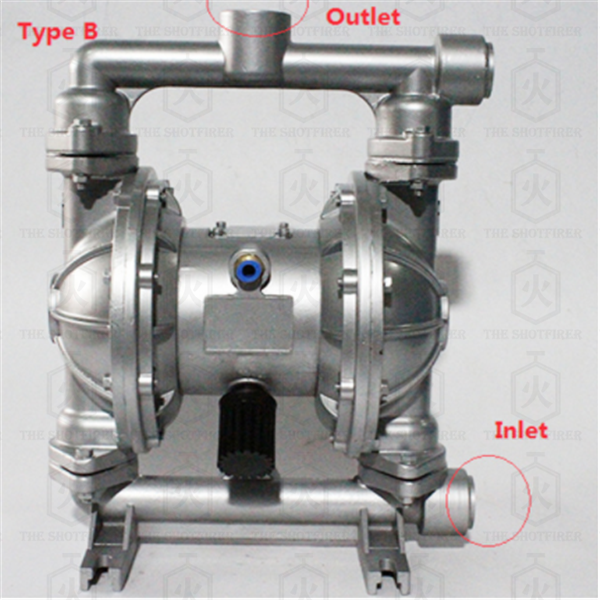

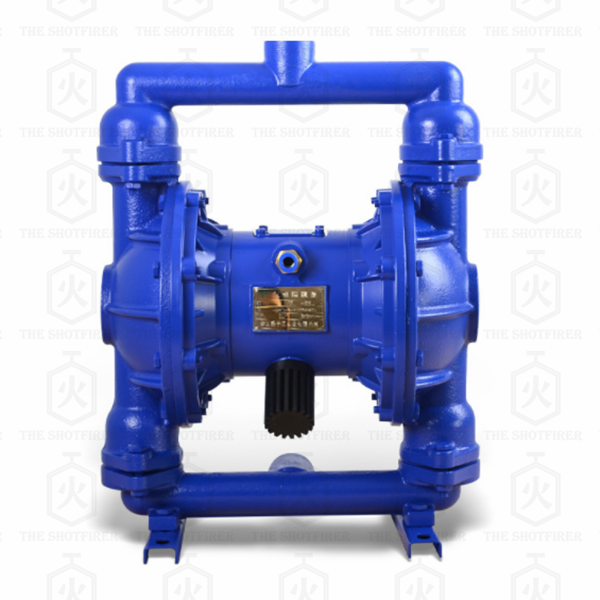

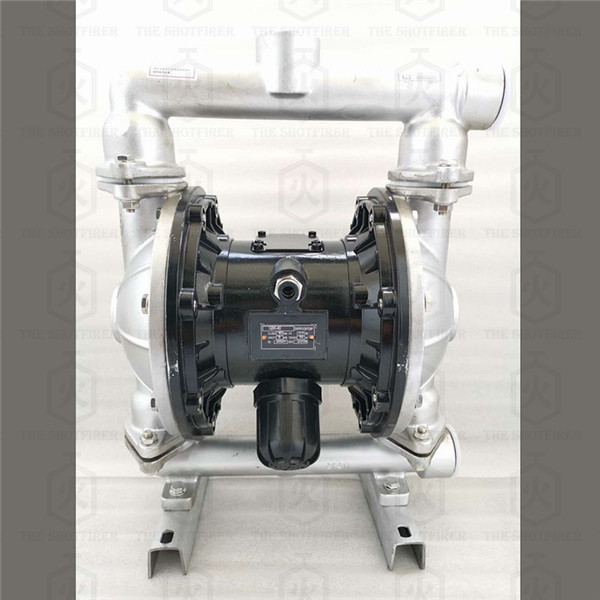

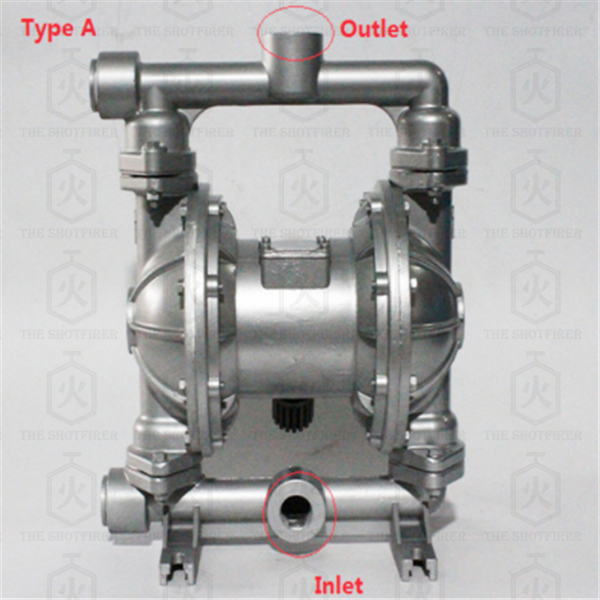

Diaphragm pump QBK-40 Max Flow Rate 140 L/Min Air operated Stainless Steel / Aluminum Alloy Pneumatic diaphragm pump

Body Material: Aluminum Alloy / Stainless Steel SS304 / 316 Diaphragm Material: Rubber NBR or FEP Max Flow Rate: 140 L/min Head: 0-69 m Outlet Pressure: 6.9 kgf/cm2 Suction Head Lift : 5 m Max grain diameter: 4.5mm Max Supply Pressure: 7 kgf/cm2 Max Air Consumption : 1.7 m3/min Normal Air Consumption: 0.6 m3/min Inlet & Outlet: BSPT Thread 1-1/2"various corrosive liquid containing granules, viscous, volatile, inflammable, explosive or poisonous liquid, porcelain slurry, mashed fruit, flue, the reclamation of residual oil in tanker, temporary reversion of tanker etc. The components in contact with flow are made of stainless steel , aluminum alloy, cast iron and engineering plastic, while diaphragm mace be NBR, VITON or FEP PTFE.
