$1800 Per Set
Capacuty: 100kg
Loading pressure: 0.25-0.45Mpa
Hose diameter: 25mm or 32mm
Adajustable to borehole: 40-90mm
Loading/Charging capacity: 600kg/h
Charge density: 0.95-1g/cm
Charge depth: 0~25m 25~50m (BQF-100II)
Larger capacity could be customized
Safety certified by MIT.

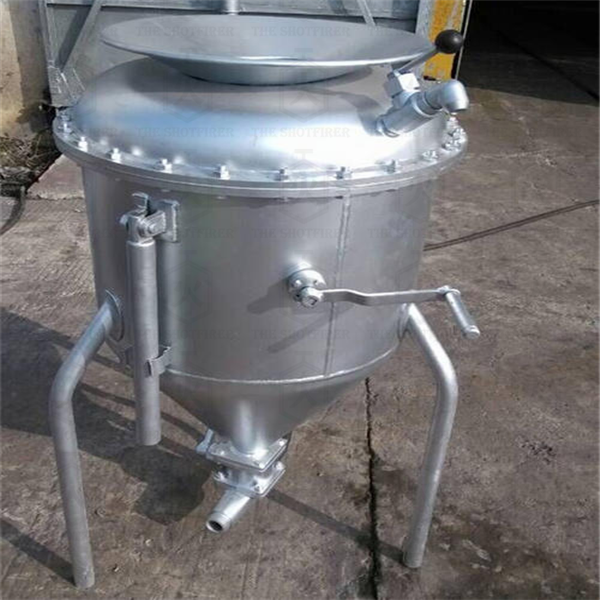

The pneumatic charging device is suitable for medium and deep hole charging in OP mines, underground mines and large caverns, which is controlled by manual machinery. Suitable for powder and granular charging.
The commonly used BQF-100 charging device adopts a stainless steel cylinder, which is suitable for charging in 15-25 meters hole. Its weight is 85 kg, the charging speed is 600 kg/h, and the charging density is 1.
Parameters of BQF-100 Type Charger:
Product model: BQF-100 type
Size | 980*760*1265mm | Volume | 150L |
Weight | 95kg | Charging capacity | 100kg |
Hose D | Φ25 Φ32 | Charging pressuer | 0.25-0.6mpa |
Larger capacity could be customized
